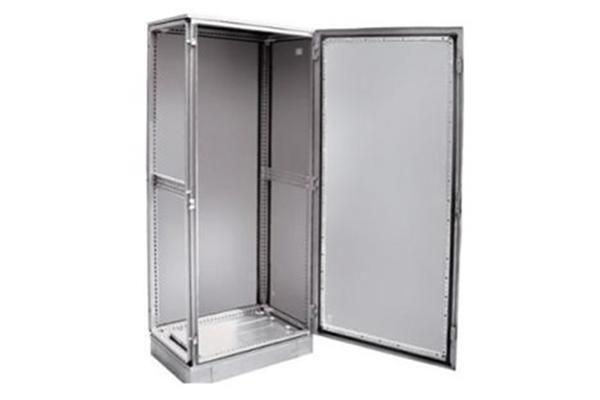

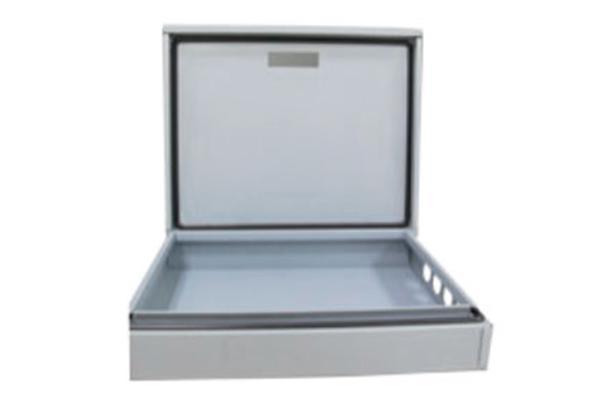

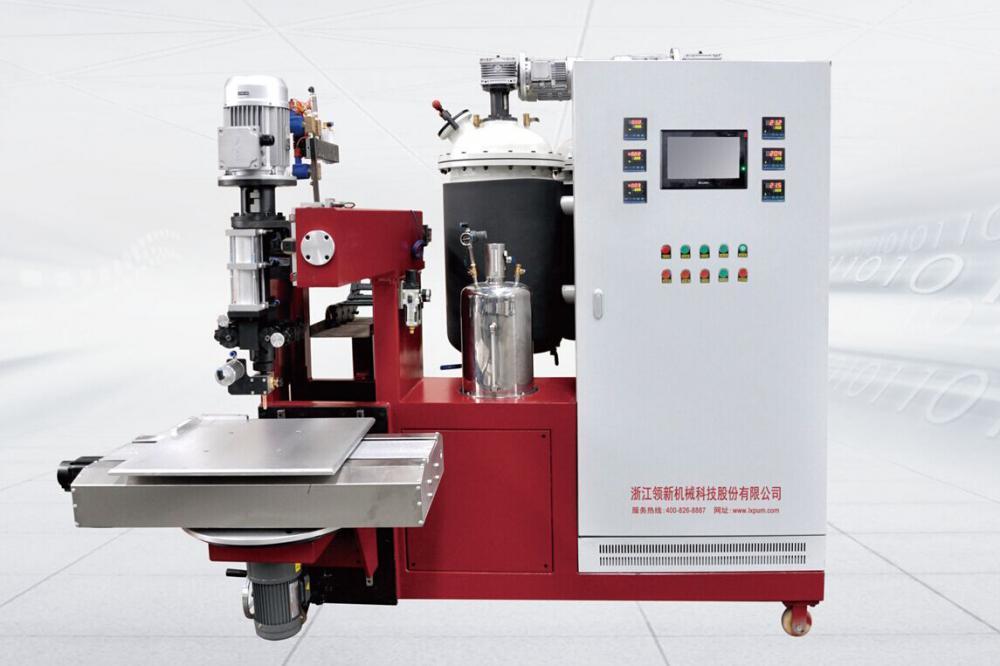

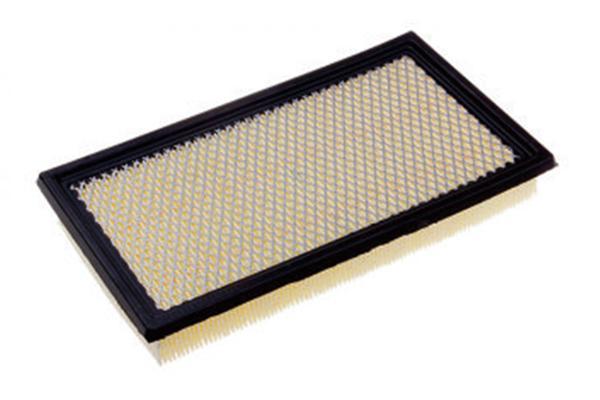

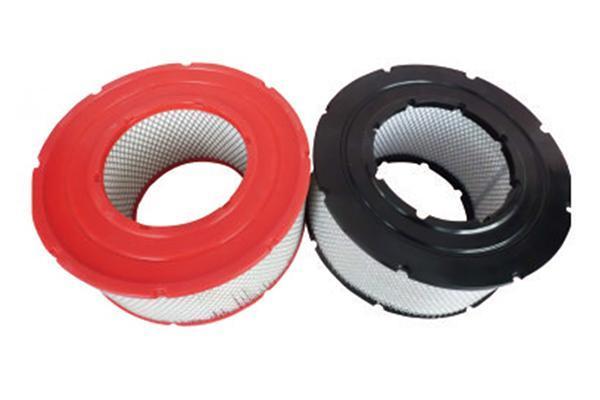

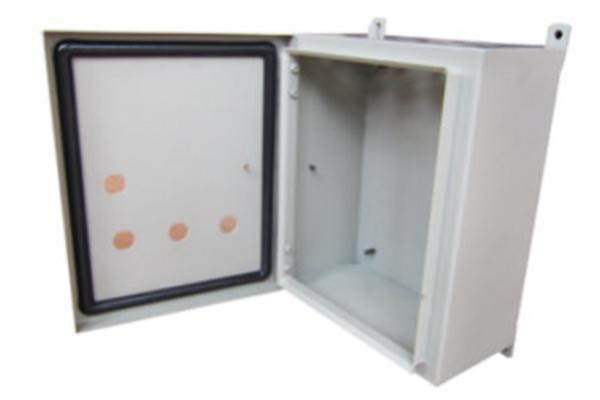

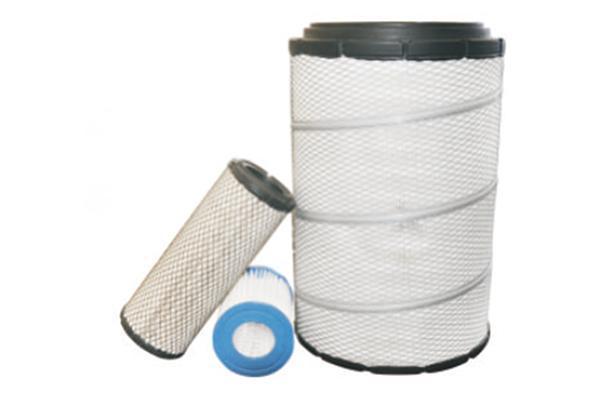

The polyurethane sealing strip casting machine is used specifically for pouring sealant for automotive air filters, industrial filters, air purifiers and more. We offer special models for foam sealing in electrical cabinets, electrical appliance cabinets, chassis cabinets, electronics, lamps, auto parts industry, and more.

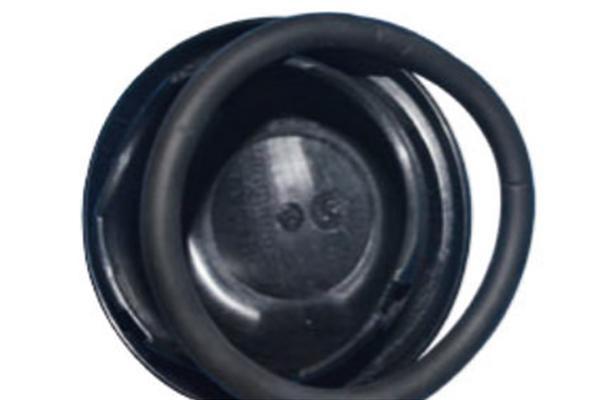

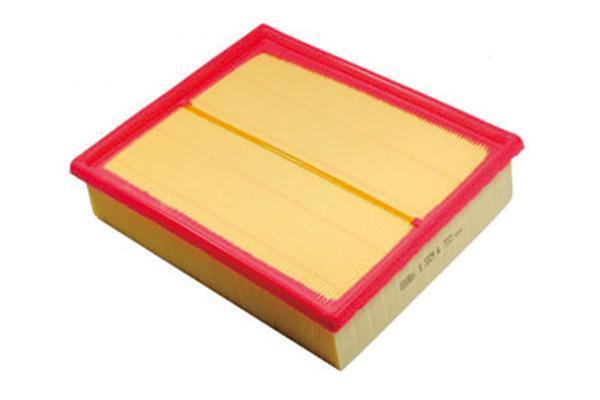

Application
Technical parameters
Raw material viscosity (22℃)
polyhydric alcohol: 3000MPas
polyisocyanate: 1000MPas
Injection flow rate
5-50g/s
Size
The maximum diameter of the circle is 500mm and the square size is 500x400mm.
Mix ratio
100:50~100:150
Injection time
0.5~99.99 S (Accurate to 0.01 S)
Material temperature control error
±2℃
Repeated injection accuracy
±1%
Volume of tank
120L
Compressed air consumption( dry and no oil)
P: 0.6-0.8MPa
Q: 600NL/min
Heating power
2×3Kw
Input voltage
three-phase five-wire, 380V
Detailed drawing

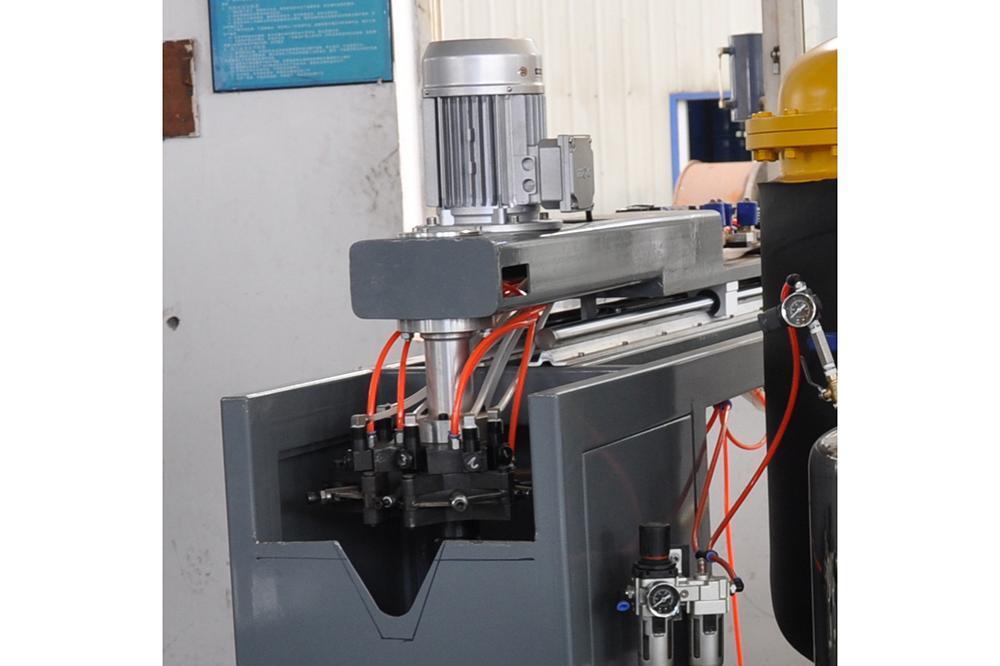

Mixing head

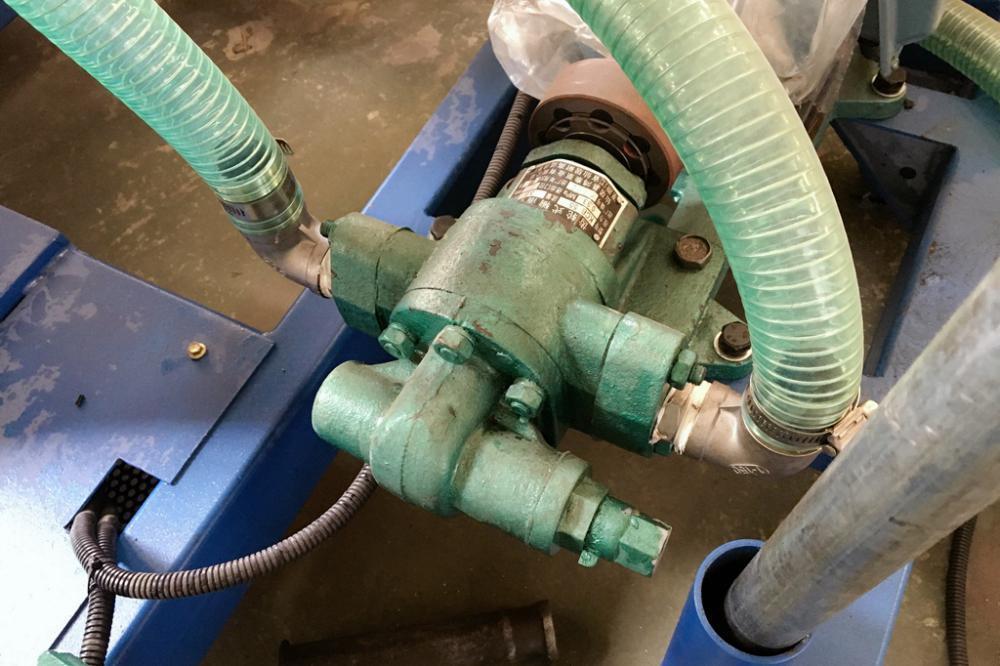

Feed pump

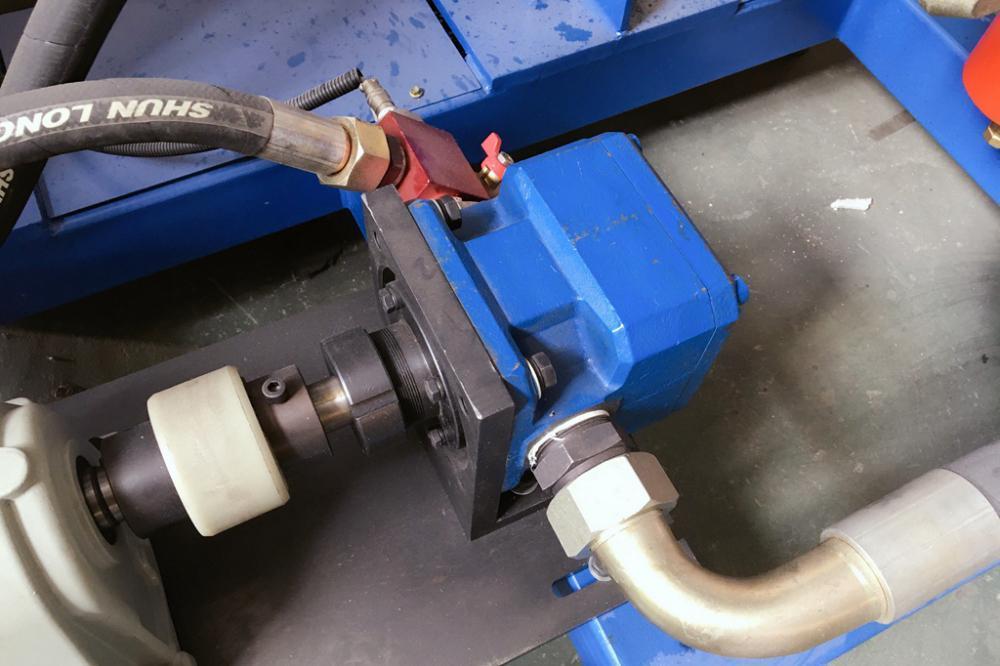

Metering pump

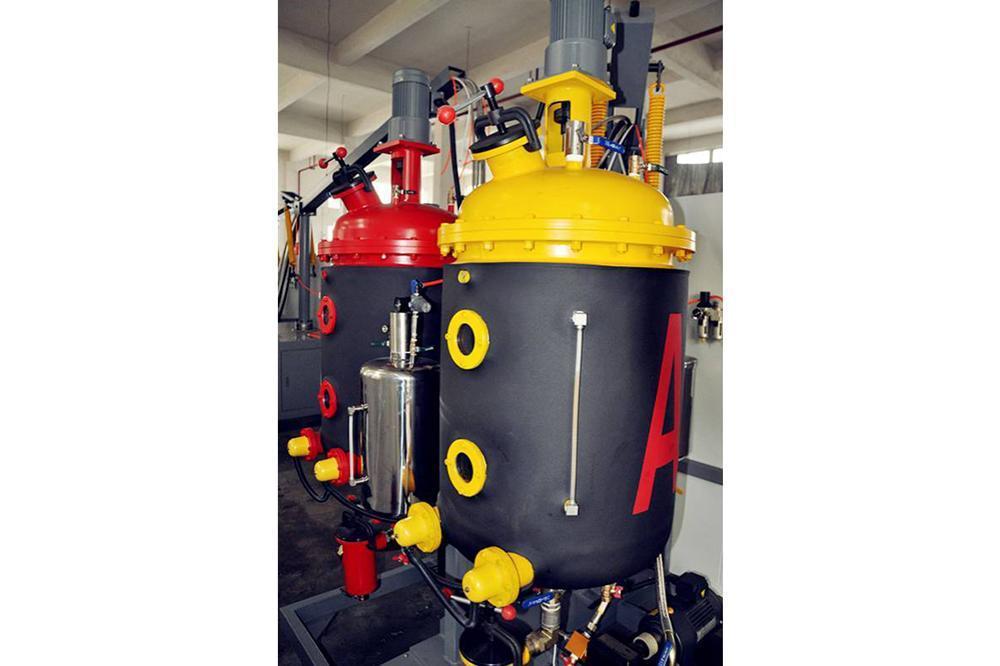

Raw material tank

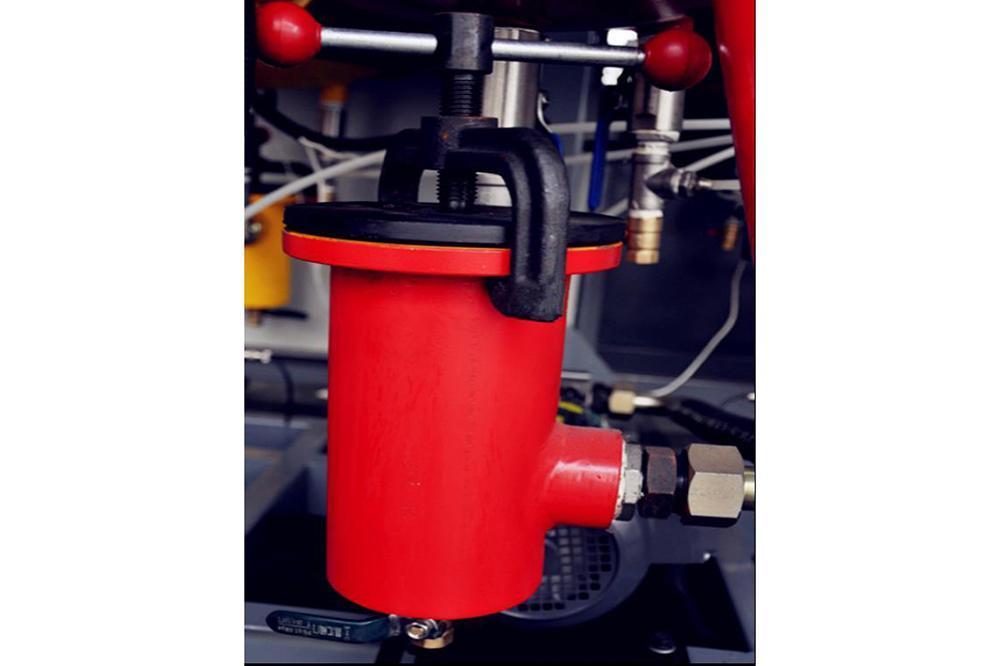

Raw material filter

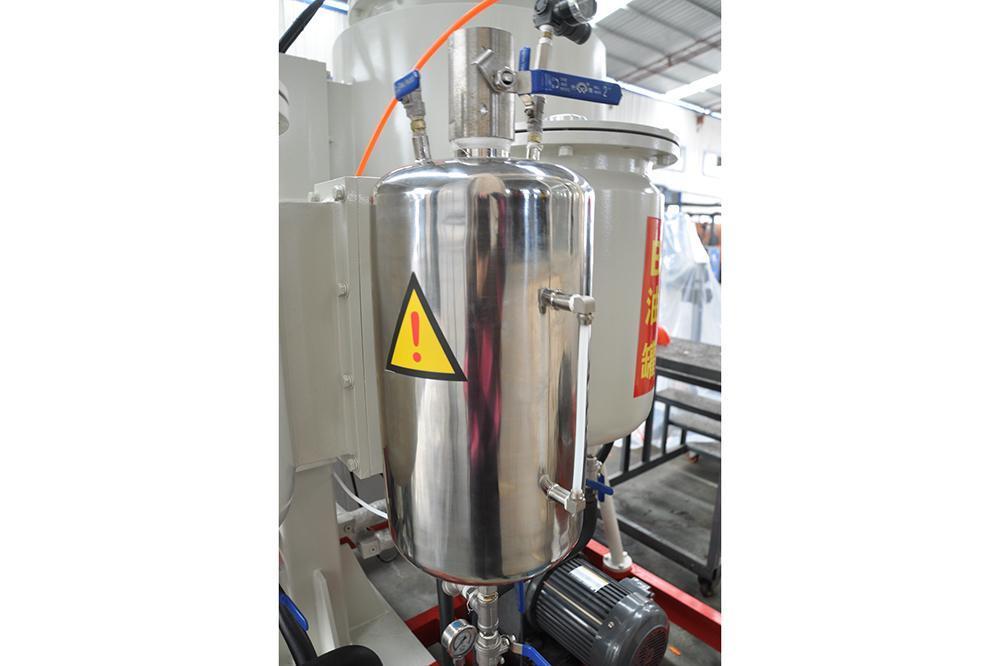

Cleaning fluid tank

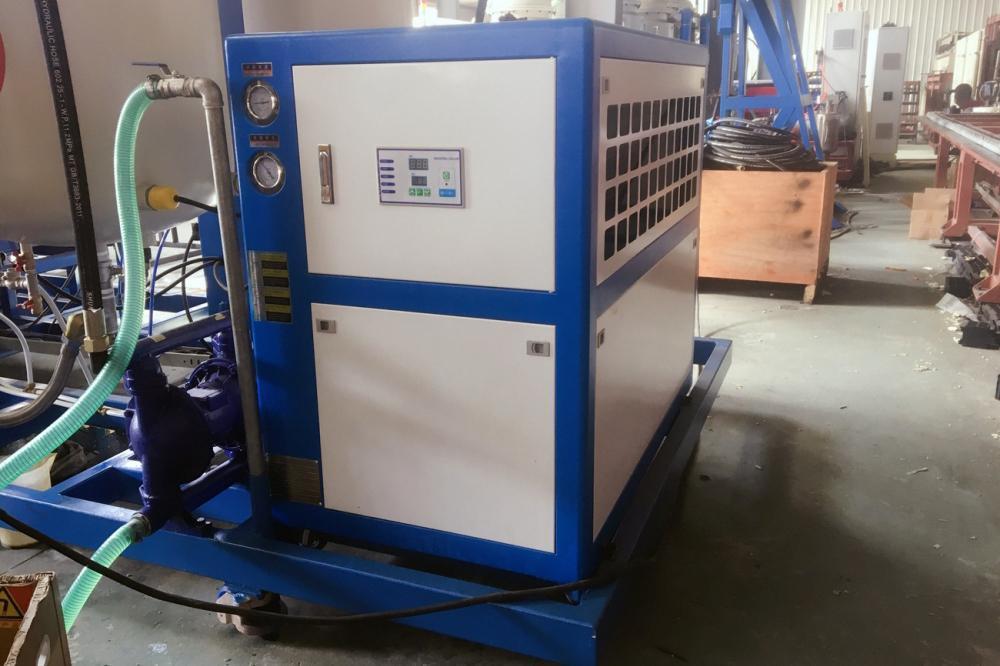

Water chiller
AirTAC cylinder

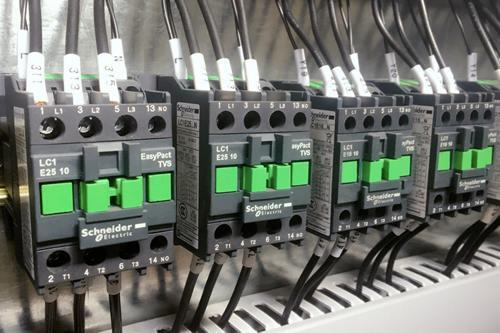

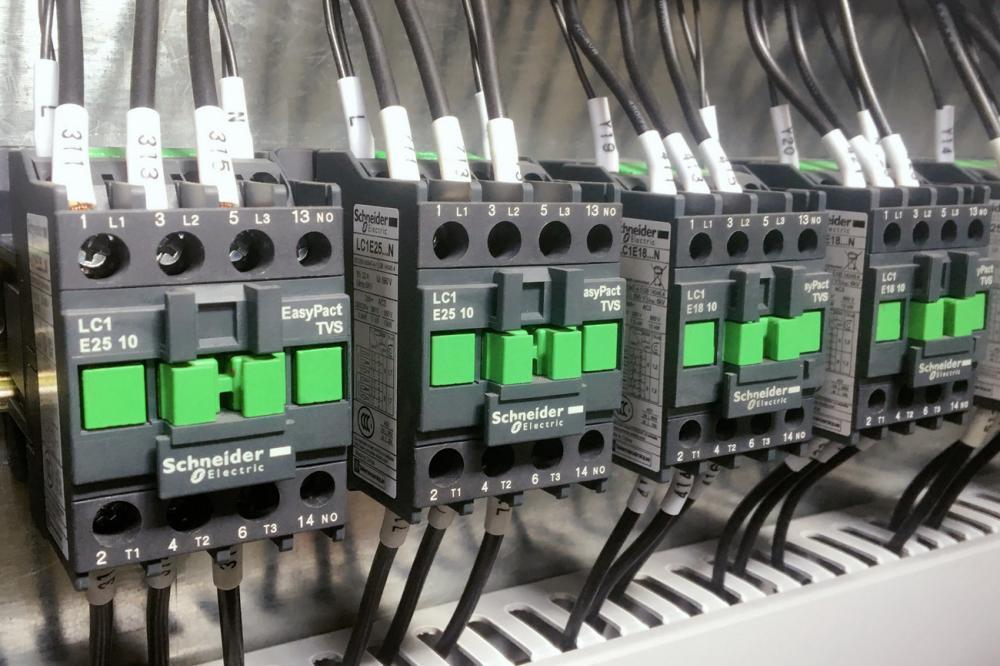

Schneider AC contactor

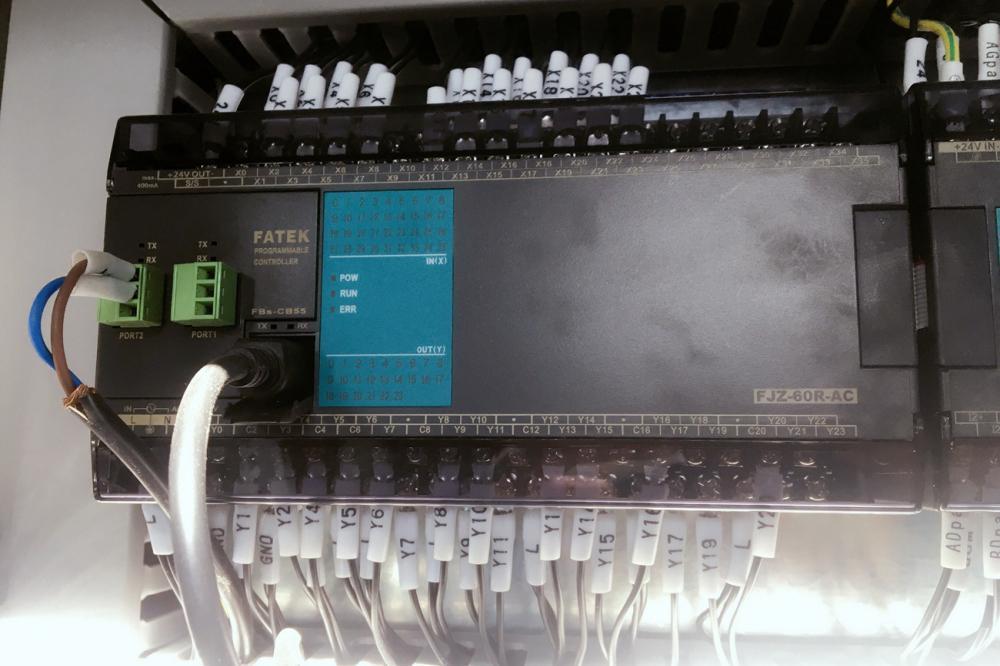

PLC controlling system

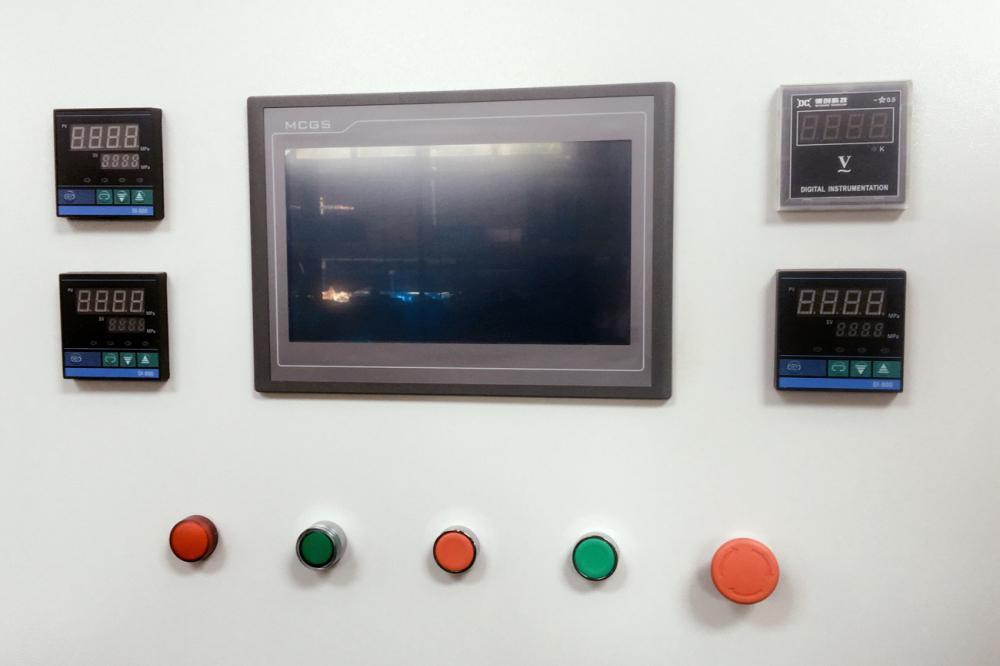

Operation panel
Features
1. The high-precision metering pump achieves an accurate materials ratio, with the measurement error never exceeding ±0.5%.
2. A high-performance mixing device, capable of preventing raw material leaks, ensures raw materials are fed accurately and synchronously, as well as mix evenly.
3. The equipment can control the mixing head injection time and the cleaning frequency in a fully automatic manner. Cleaning and forced air drying can also be completed automatically, making operation simpler.
4. The storage tank is a three wall structure with a stainless steel liner and an external insulation layer, with the inner layer used for heating. The storage tank temperature is adjustable, improving both safety and energy performance.
5. A PLC, touch screen and servo system control the equipment to complete the pouring, and move according to the programmed trajectory. The positioning is accurate, with an automatic, high production efficiency and reliable performance in pouring round, square and special, irregularly shaped products.
6. This equipment can be equipped with an automatic feeding device, high-viscosity feed pump, alarm system for materials shortage, water cleaning device for mixed head and more.
Models of PU Casting Machine for Sealing Strip
This is product model table for customers to choose from. If you do not find what you need, please contact Lingxin directly, and we will customize polyurethane equipment to meet all of your requirements.
