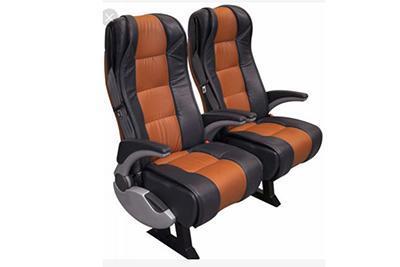

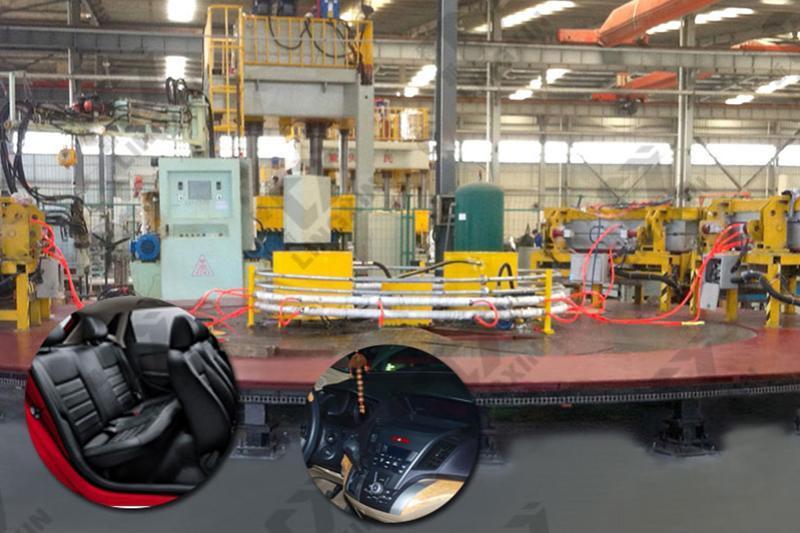

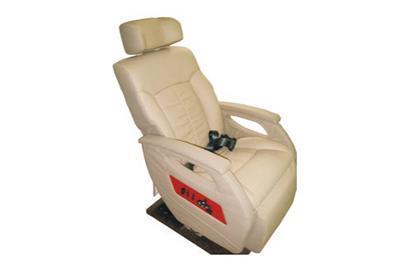

The PU car seat production line is primarily used in the manufacturing of polyurethane seats and armrests, including car seats, armrests, motorcycle seats, and other vehicle seats and arm rests. The PU foaming machine is compatible with 141B foaming and a water foaming system.
Application
Technical parameters
Raw material viscosity (22℃)
Polyhydric alcohol: 2000MPas
Polyisocyanate: 1000MPas
Injection pressure
10~20MPa(ADJ)
Mix ratio
1:5~5:1 (ADJ)
Injection time
0.5~99.99 S (Accurate to 0.01 S)
Material temperature control error
±2℃
Repeated injection accuracy
±1%
Injection flow rate
160-800g/s
Hydraulic system pressure
10~20MPa
Volume of tank
250L
Compressed air consumption( dry and no oil)
P: 0.7MPa
Q: 600NL/min
Production line operation speed
3-10m/min
Input voltage
three-phase five-wire, 380V
Detailed drawing

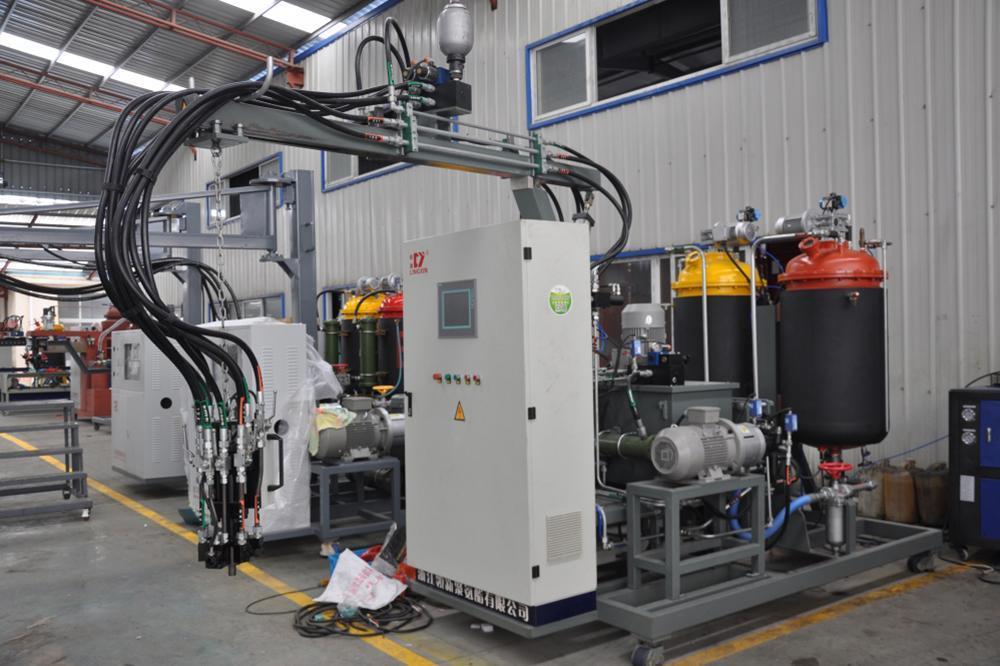

Main engine of PU foaming machine

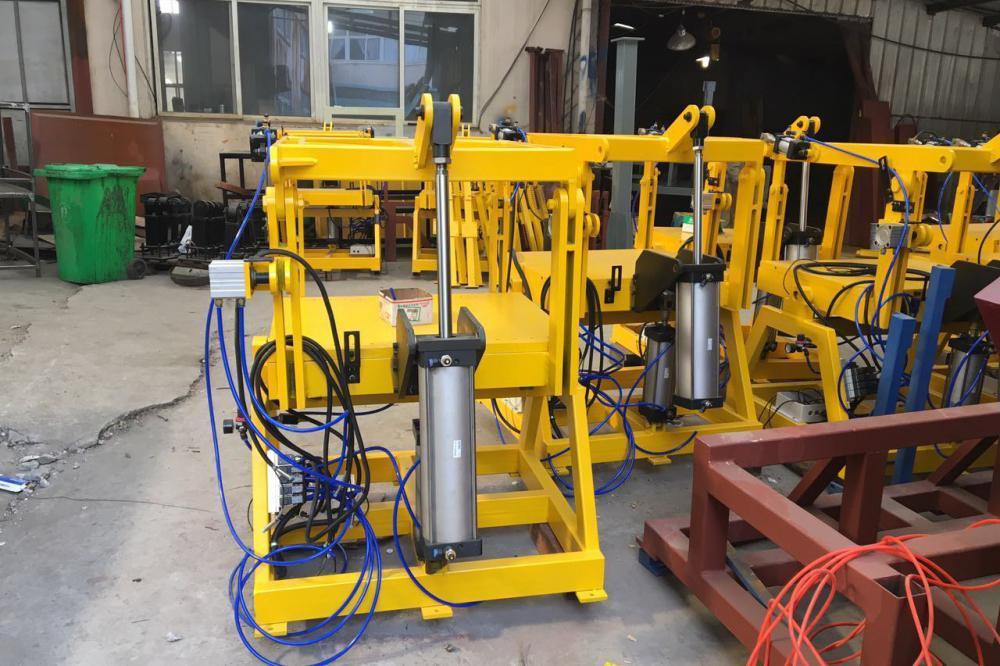

Seat mould

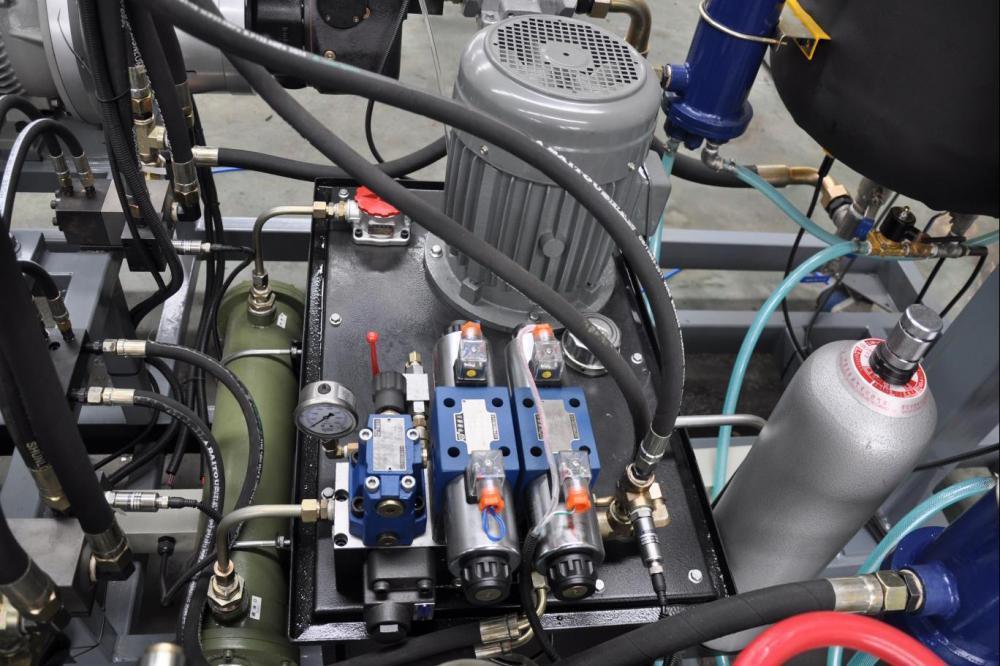

Hydraulic-Pressure Unit System

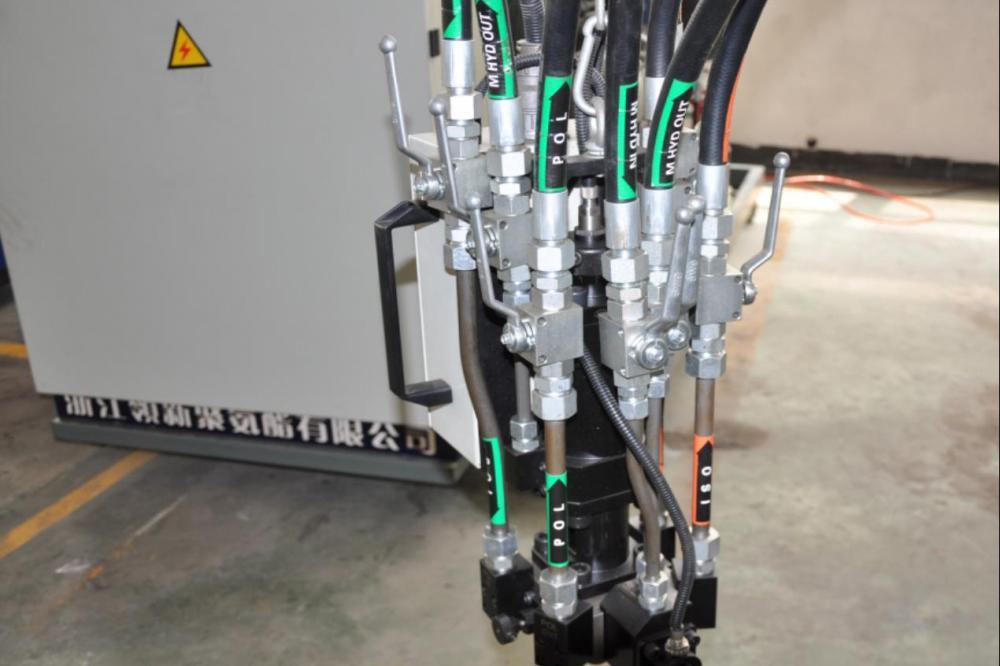

Korea SPU high efficiency mixing head

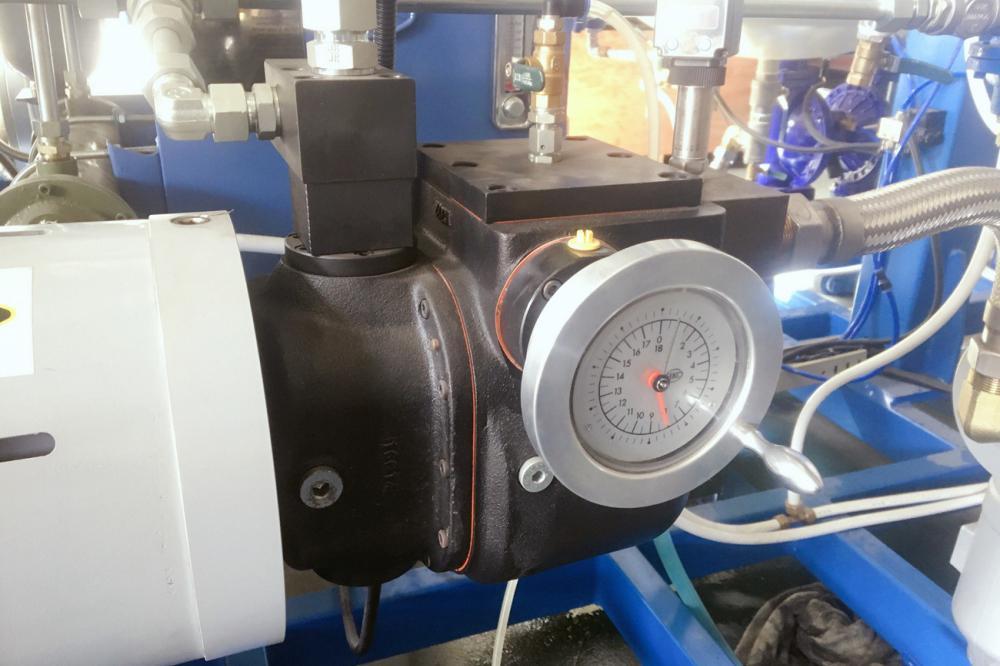

High-end metering pump

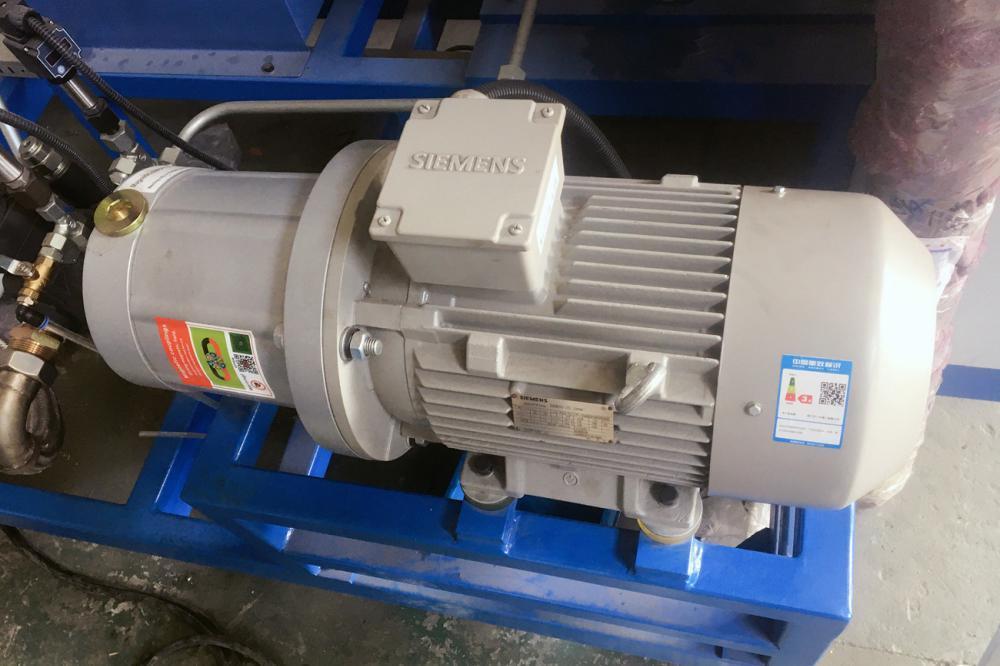

Metering pump motor

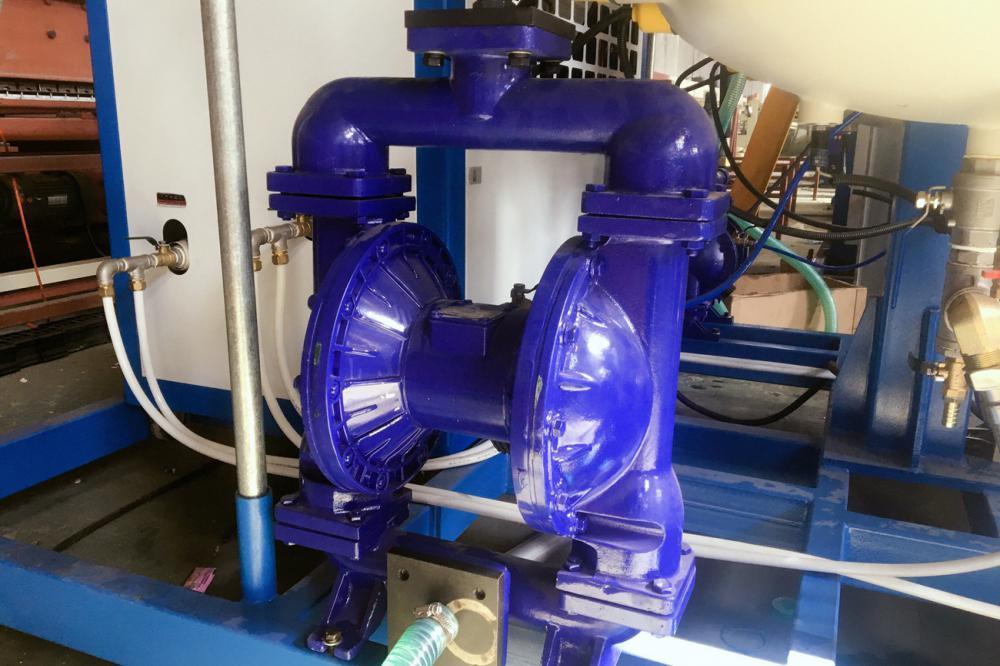

Feed pump

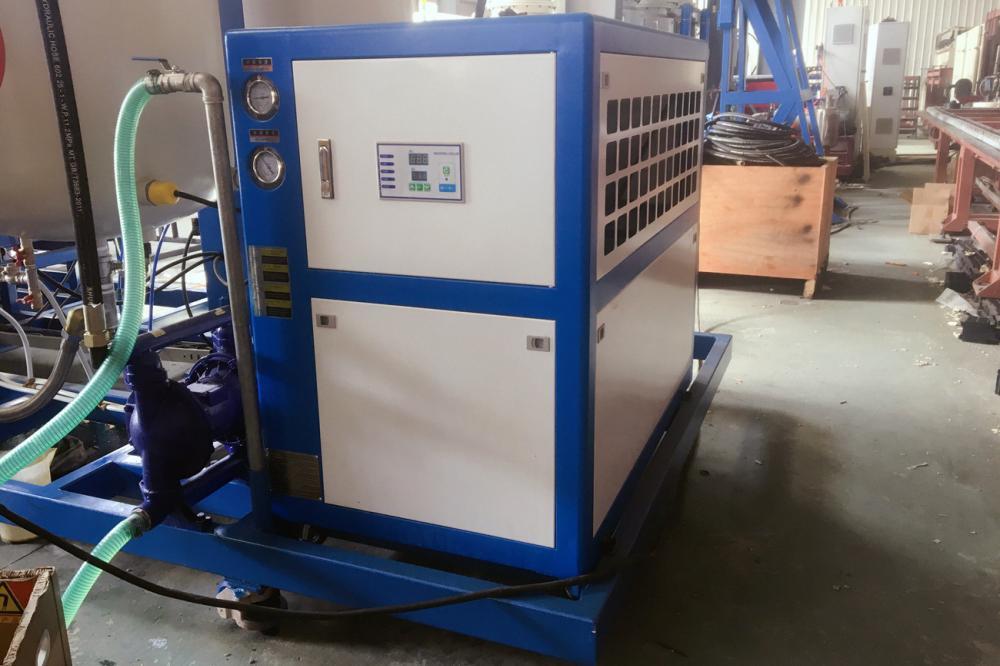

Water chiller

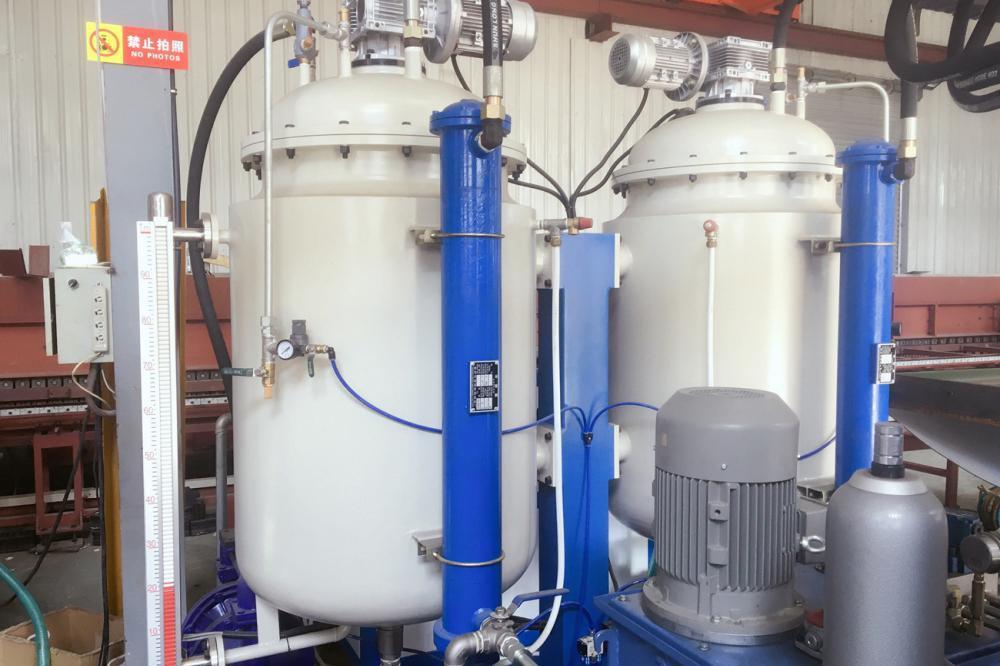

Raw material tank

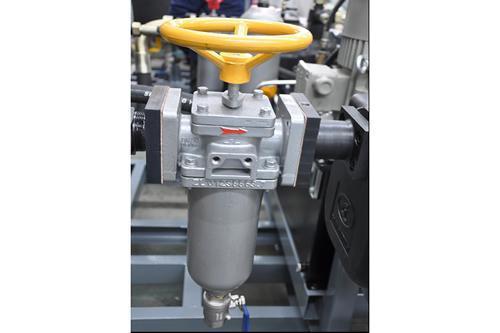

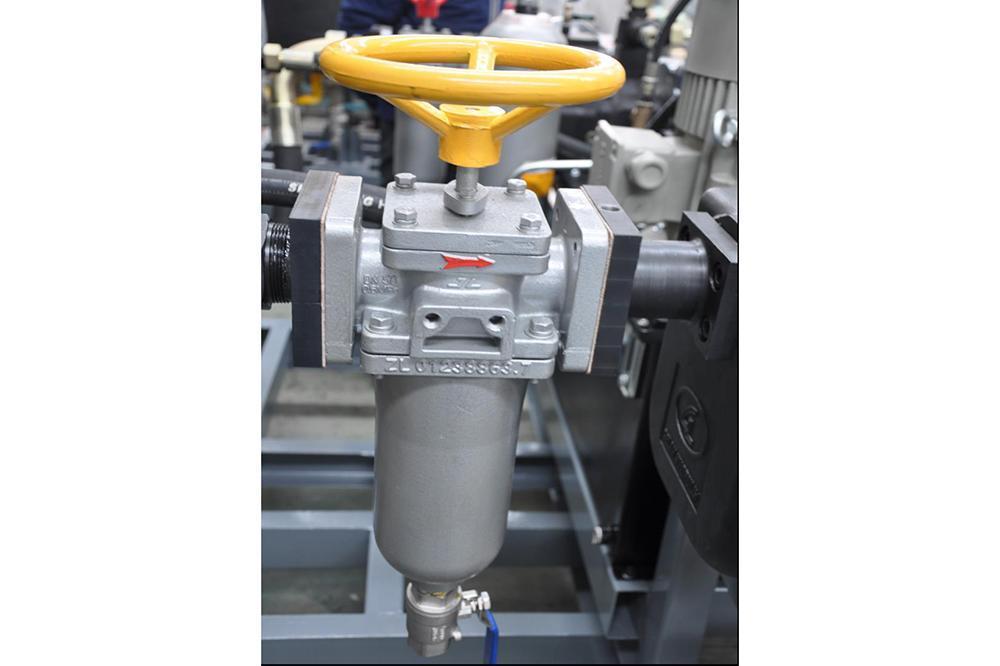

Raw material filter

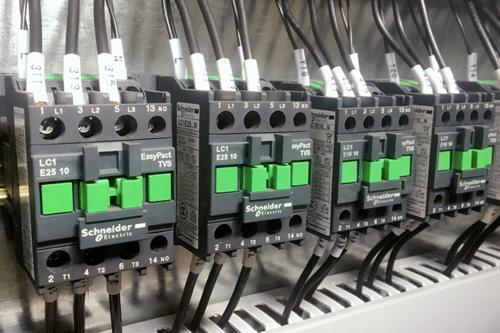

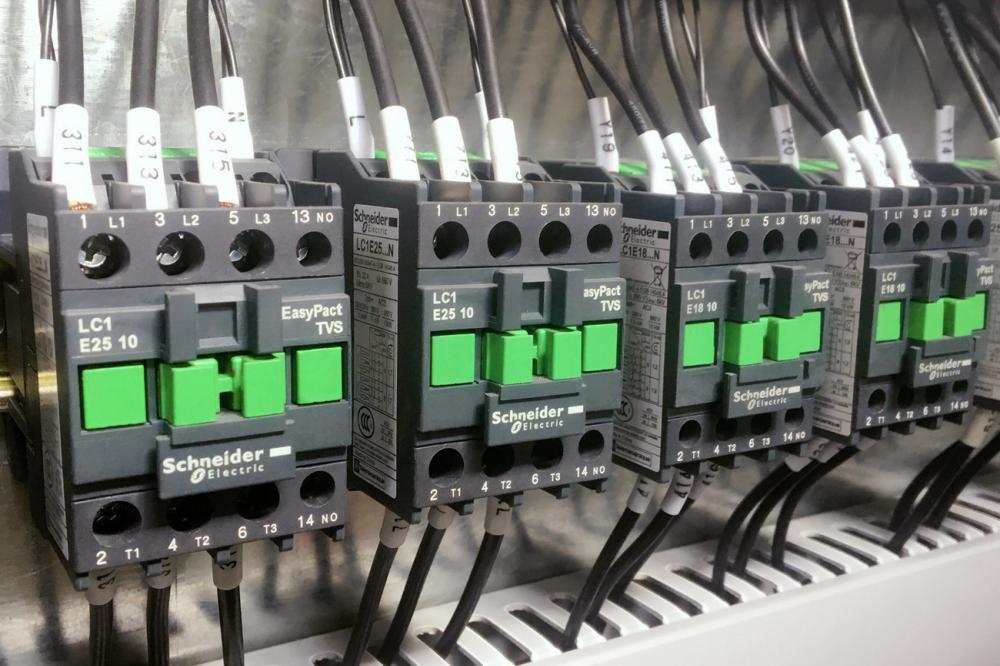

Schneider AC contactor
Taiwan AirTAC cylinder

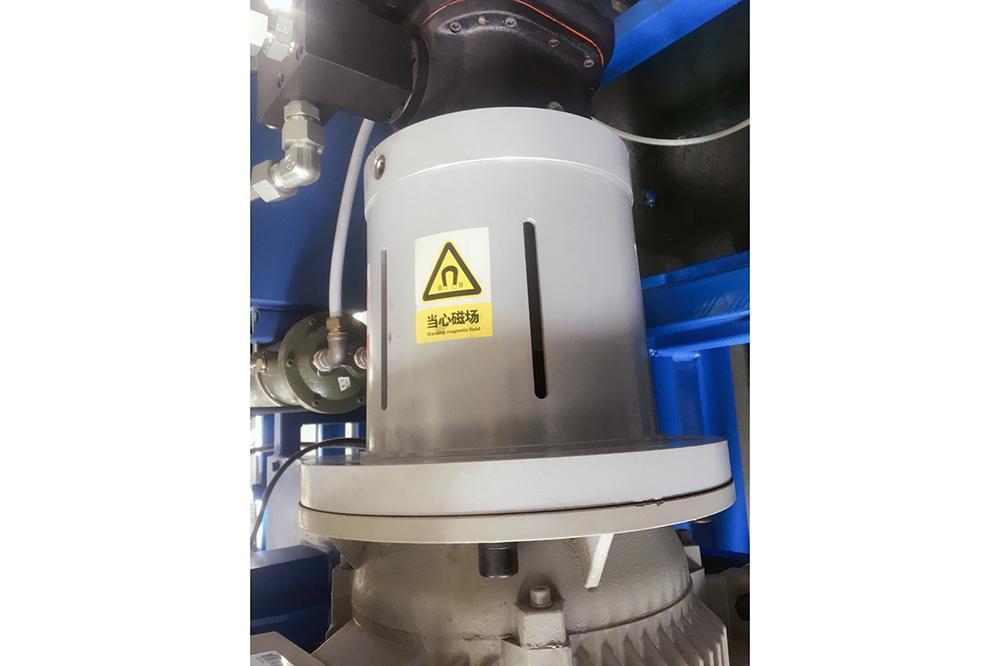

High quality magnetic coupling

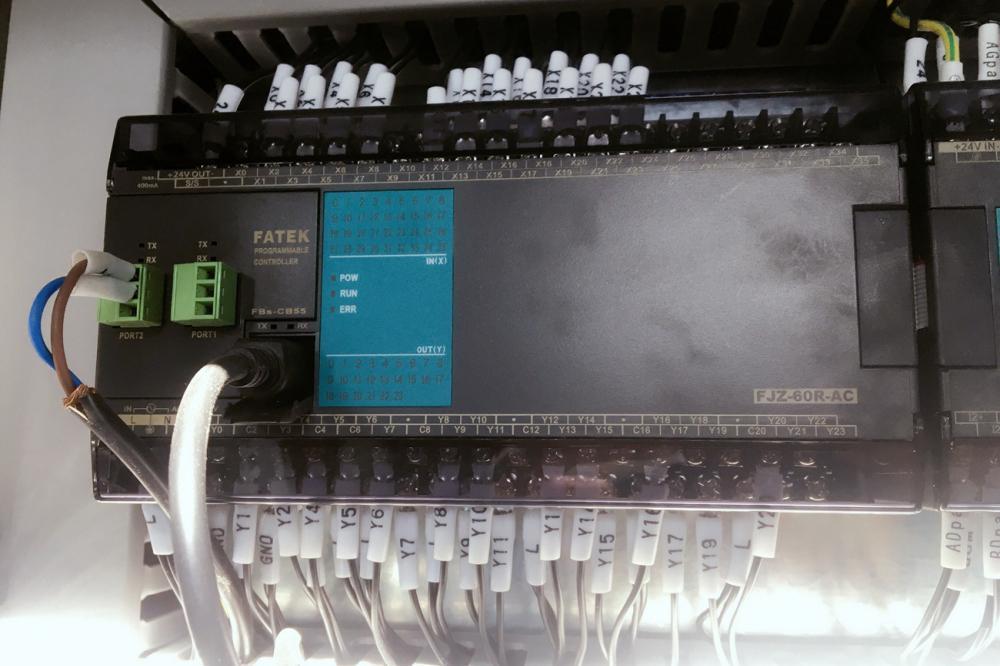

PLC controlling system

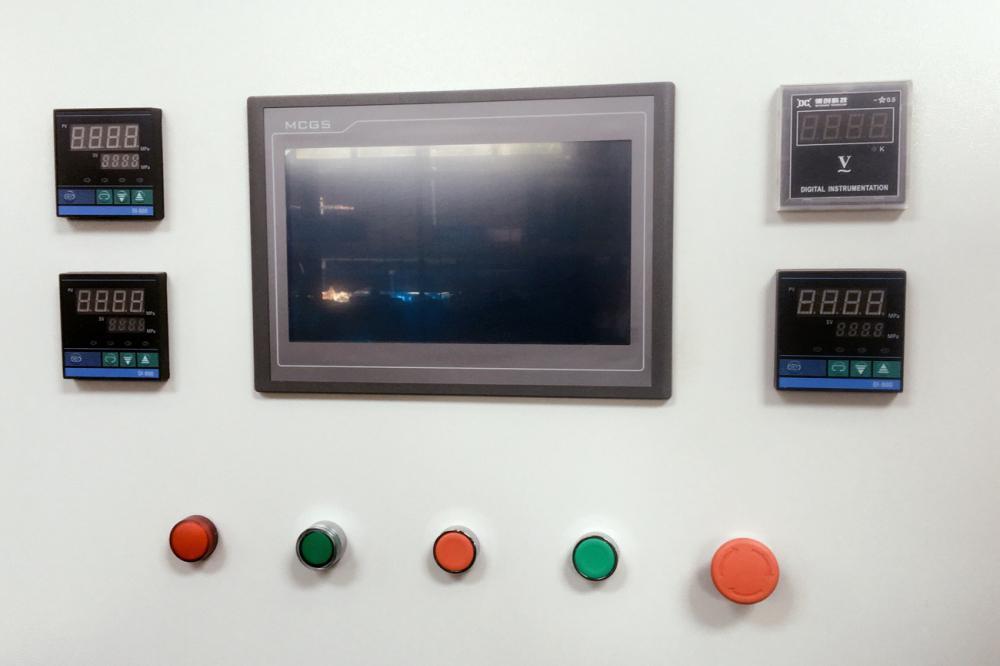

Operation panel
Features
1. The high precision plunger variable pump is accurate and steady.
2. This feeding program provides 100 stations, with every station able to be programmed to meet the production needs for multiple products.
3. The mixing head used for injection can freely move in 6 directions, including front/back, left/right, and up/down. The double close switch control ensures accurate injection.
4. The high precision mixing head is made of a high strength material with a service life of more than 500,000 uses. High pressure injection and impact mixing produce a high mixing uniformity, and the self-cleaning function ensures there is no residue, and no need to clean or maintain the equipment.
5. The pressure needle valve uses two raw material types (polyisocyanate and polyhydric alcohol) and will automatically lock when they balance, ensuring the pressure between the two raw materials is consistent.
6. Magnetic coupling uses a permanent magnet control which avoids temperature rises and leaks.
7. The raw material timing cycle function ensures the raw materials do not crystalize when the equipment is not in use.
8. A fully digitized and modularized integration system controls all technological process, which is visualized, precise and safe to operate.
Models of PU Car Seat Production Line
This is the product model table for customers to use in product selection. If you do not find what you want or need, contact Lingxin directly, and we will customize polyurethane equipment to meet your needs.
