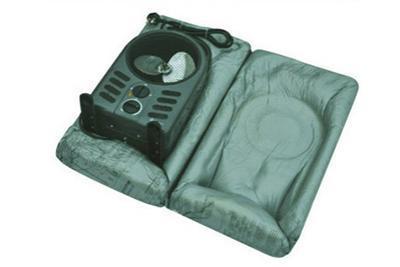

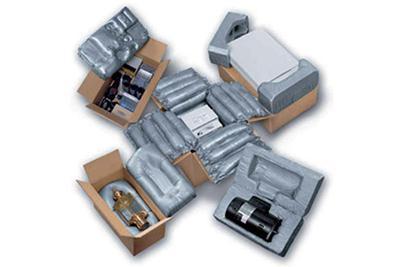

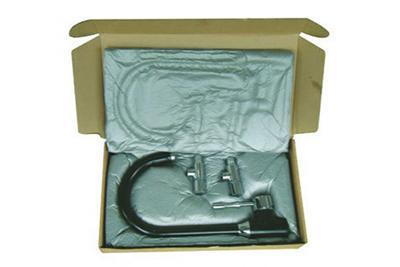

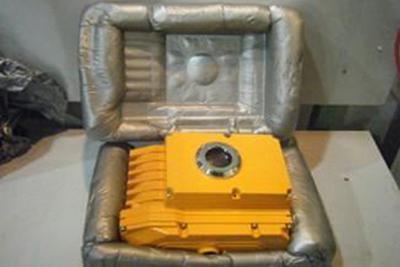

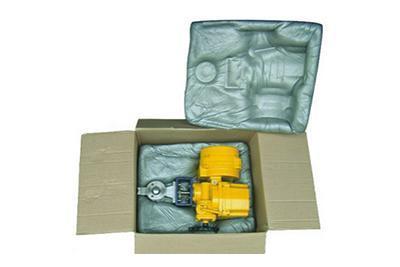

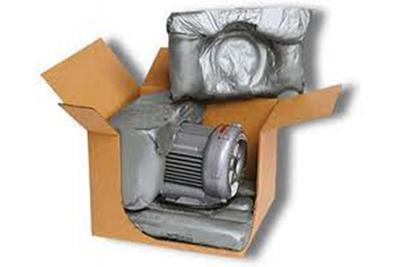

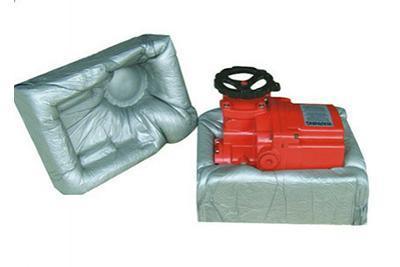

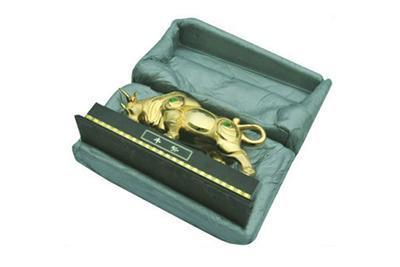

The polyurethane foam packaging machine is used for the production of PU packaging materials that are often used to package specially shaped and breakable products. These PU packaging materials are often used for precision instruments, machinery, aviation instruments, electronic communication, pump valves, pneumatic sensor, art, ceramics, glass, lighting products, and sanitary ware products.

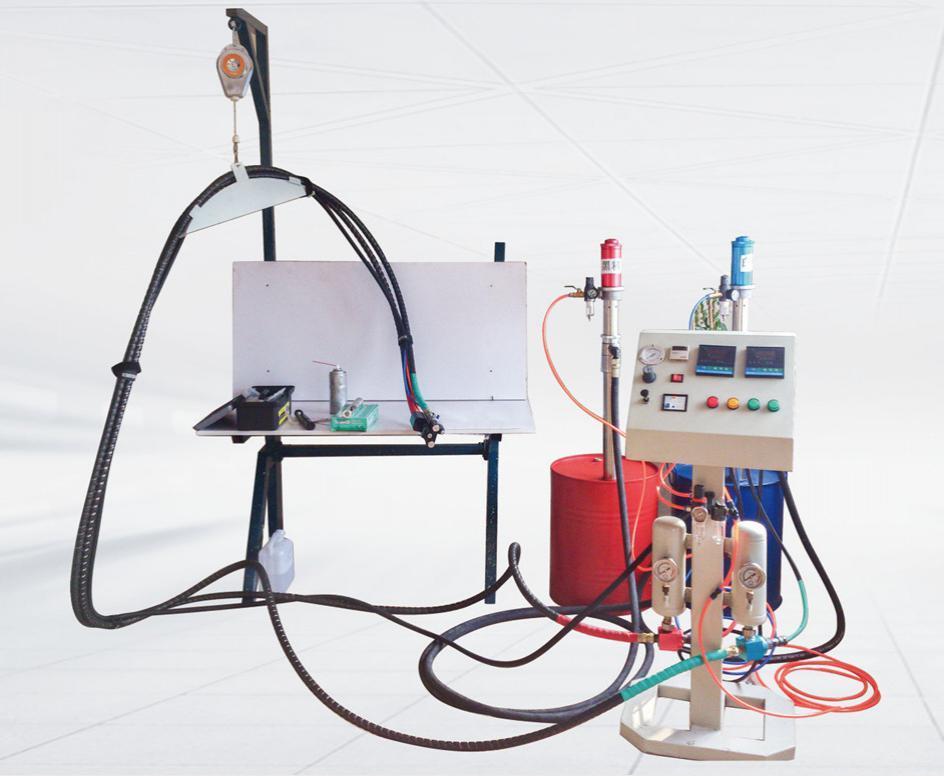

Lingxin's PU foaming machine features an excellent stability and precision during the injection process. The polyurethane foam products feature a high buffer performance, which provides positioning, buffering and space filling capabilities for packaged products in order to ensure reliable protection during transportation, storage, loading and unloading.
Raw material viscosity (22℃) | polyhydric alcohol: 3000MPas |
polyisocyanate: 1000MPas | |
Injection flow rate | 3-8 Kg/min |
Material temperature rage | 0-99 ℃ |
Concentrate pressure | 1.2-2.3Mpa |
Casting time | 0~99 S |
Air requirements | 0.35 m3/min |
Power | 4.5KW |
Weight | 85KG |
Input voltage | 220V 50Hz |
This is product model table for customers to choose from. If you do not find equipment that meets your needs, contact Lingxin directly and we will customize polyurethane equipment to meet your needs.
LX-02F PU Foam Machine, PU Foam PackagingApplication | Injection flow rate | Control system | Polyether polyol temperature | Isocyanate temperature | Total power | Size |
Packing | 3-8kg/min | Air-operated | 0-99℃ | 0-99℃ | 4.5KW | 1000x600x600mm |
